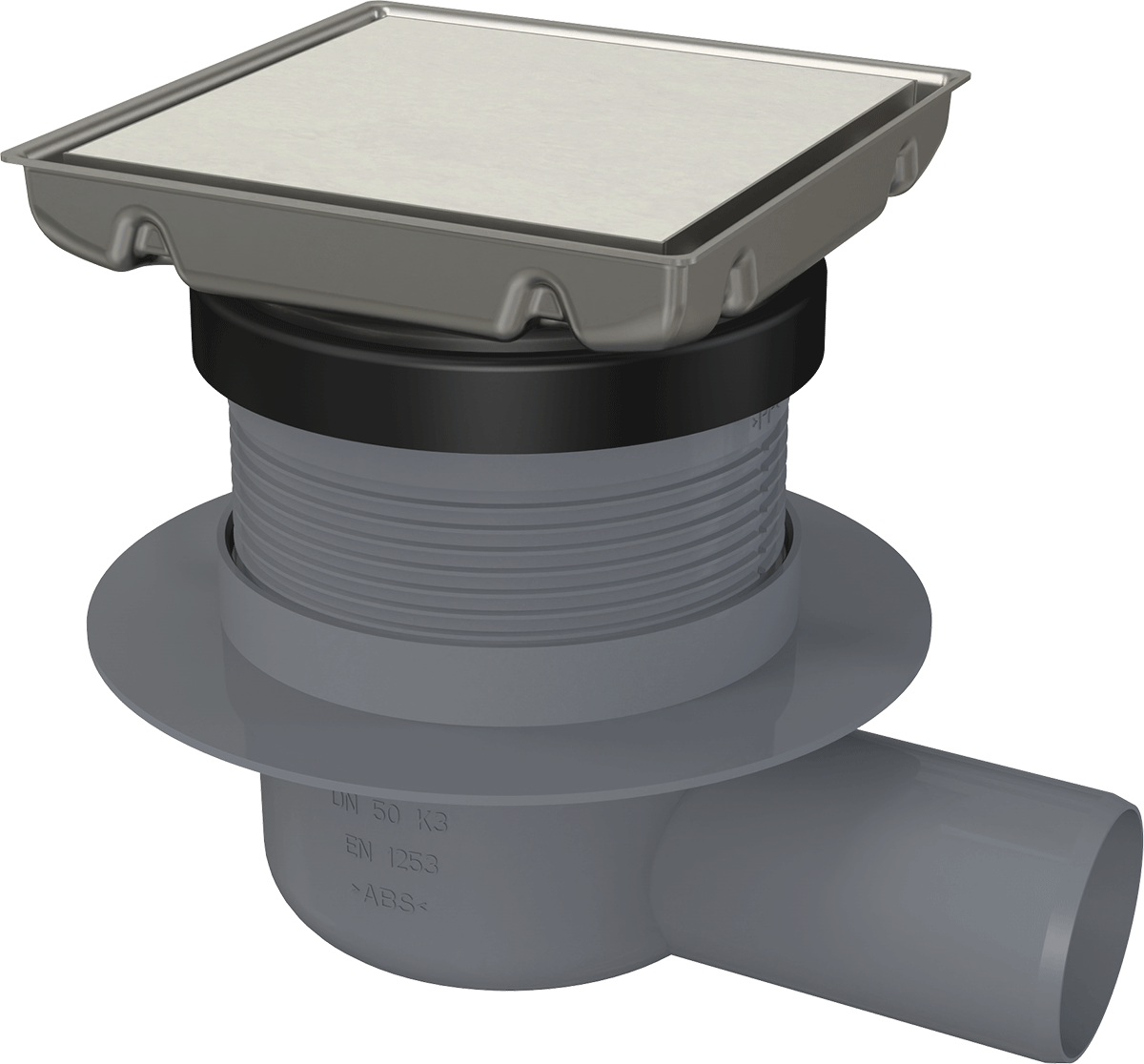

FLOOR DRAIN 130×130 MM SIDE OUTLET
FLOOR DRAIN 130×130 MM SIDE OUTLET
In stock
Regular price
€40,84 EUR
Regular price
Sale price
€40,84 EUR
Unit price
per
Taxes included.
20% Discount on orders up to 2000EUR
25% Discount on orders over 2000EUR
Get it between -
Couldn't load pickup availability
- For the interior, where will be frequent use associated with the regular water runoff into the floor drain (bathrooms)
- Side connection to waste Ø50 mm
- Mechanically cleanable trap up to the waste pipe
- Material of floor drain: stainless steel AISI 304, DIN 1.4301, DIN 17240
- Installation with tile or without
| Flow rate | 48 l/min |
| Odour trap | 50 mm |
| Resistance of odour trap against the pressure | 540 Pa |
| Load class K3 | 300 kg |
| Waste pipe diameter | 50 mm |

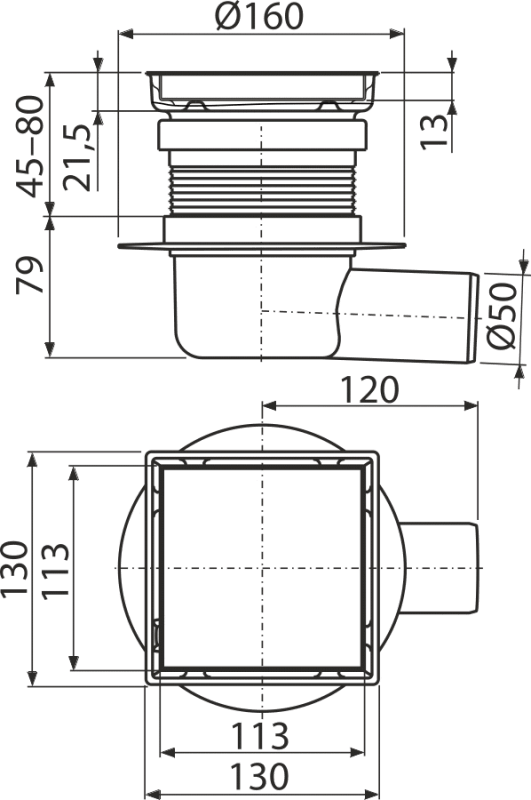

| Total installation height | 108 – 162 mm |
