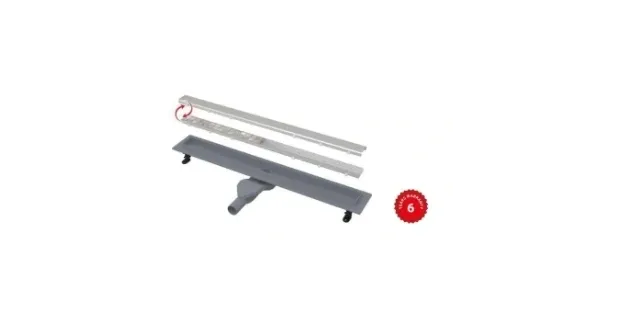

ALCADRAIN SHOWER DRAIN WITH AN EDGE FOR TWO-SIDED GRID

ALCADRAIN SHOWER DRAIN WITH AN EDGE FOR TWO-SIDED GRID

In stock

Regular price €112,63 EUR
Regular price Sale price €112,63 EUR
Sale Sold out
Taxes included.

20% Discount on orders up to 2000EUR

25% Discount on orders over 2000EUR

Get it between -

  • Flow of the inlet grid 40 l/min
Application:
  • For wheelchair access
  • For drainage of floor-level showers
  • For installation into open spaces or near the wall of the shower area
  • For indoor use
Features:
  • Secure connection to the construction waterproofing system
  • Material: polypropylene filled with talc resistant to mechanical, chemical and thermal damage
  • Mechanically cleanable trap up to the waste pipe
  • Self-adhesive tape for quality waterproofing
  • Installation height from 77 mm
  • Wet odour trap with swivel elbow
  • Adjustable plastic anchor legs allowing fast and convenient installation, including the precise setting of the required level
  • High resistance against chemicals
  • Scope of supply Fixing hardware for anchoring the adjustable legs: screw 4.2×9.5 – 8 pcs
  • Twosided grid OPTION
  • Self-adhesive waterproofing tape
  • Strainer to capture the dirt Wet odour trap
  • Height adjustable feet
  • Linear shower drain
  • Technical specifications
  • Total installation height 77-110 mm Minimum thickness of concrete 85 mm Resistance of odour trap against the pressure 710 Pa Waste outlet diameter 40 mm Flow of the inlet grid 40 l/min Load class K3 300 kg Odor trap combined with a water seal 31 mm
